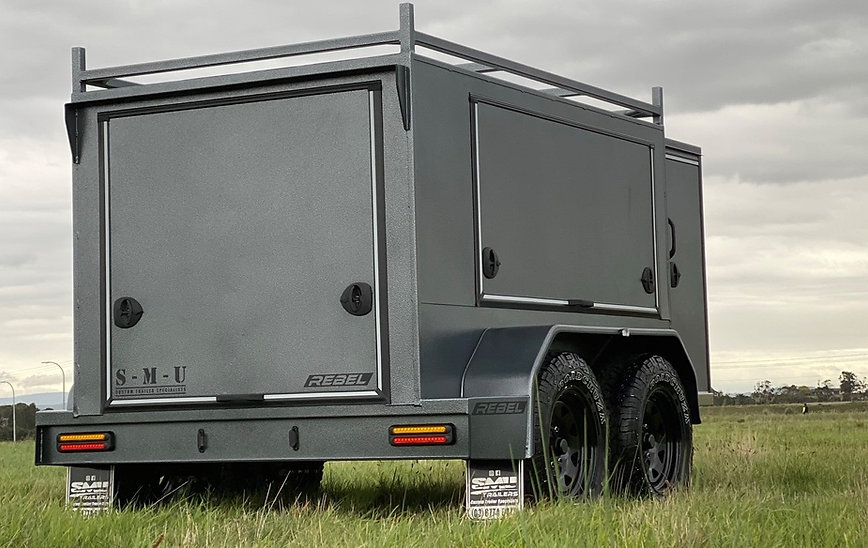

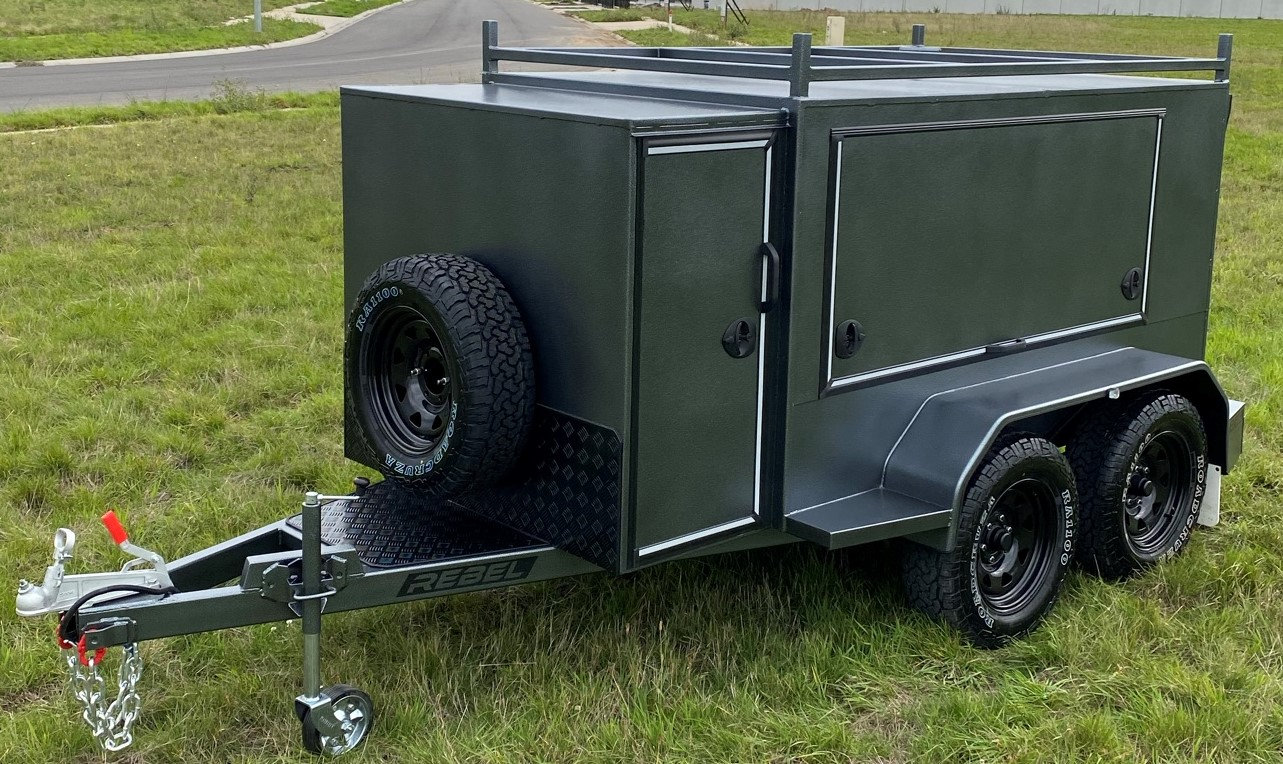

Introducing SMU's latest creation "The Rebel 8500" This is a hybrid of the Renegade with a twist! This trailer will hold its own in the current market for a simple but strong, well thought-out trailer with no extras available to keep the build time to a minimum.

​

This trailer can be produced in around 6-8 weeks right here in our Pakenham factory, alongside our 3 flagship models you have all grown to love.

​

Fixed price for the REBEL is $20,500 inc GST


Internal Features:

Rear mesh partition wall with 3 shelves 400mm deep

600mm wide x 2000mm Long dual access floating shelf

False floor provision set 300mm up from main floor


Main Body and Compressor Box:

Duragal Chassis/Draw bar and frame

Zinc anneal rust resistant sheeting throughout

2440 x 1525 x 1240mm Tall main body

2 side access doors 1 rear access door

Full height 600mm deep 2 door compressor box

Ladder Rack / Side steps included

All doors fitted with Durometer fridge seal and centreflex hinge

New style heavy duty 3 way locks

Aluminium stone protection across the front and A bar

Lighting:

Roadvision BR70 series Tailights

Dual License plate lights

Side clearance markers

Britax 7 pin square plug

7 Core main lume 4mm twin electric brake wire

Running Gear:

Mullins 6 leaf Rocker Roller load share suspension

50 square solid axles / Heavy duty 5/8 U bolt spring kit

Mullins 6 stud 10" Electric brakes on front axle only

Japanese Koyo Bearings

1990kg GVM Load Rated

16x7 Black sunraysia wheels/ Roadcruzer 235/70R16 AT Tyres

Manutec 3500kg Electric Coupling with handbrake

Manutec 8" heavy duty jockey wheel

Dual 13mm Safety Chains with Hammerlocks

IMG_0889 (1).jpeg

Paint:

Completely pre sanded and cleaned

All joints sealed and let cure for 24hours

Zinc primed powder coated

Choice of Aztec silver or Black Ripple top coat powder coat


Standard S.M.U. Warranty applied

Registration for Vic customers available

Interstate transport available

All work performed at S.M.U. Trailers and Graphics comes with a 12 month warranty against parts used and a lifetime warranty for faulty workmanship from the date of job completion.
S.M.U. Trailers & Graphics, 10 Carmart Way, Pakenham Victoria 3810.
(03) 8774 6476
